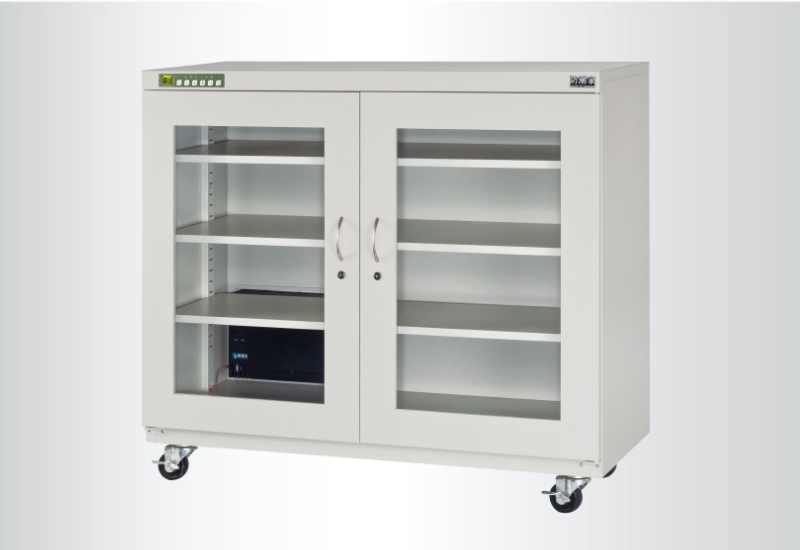

SL-490CA Ultra low humidity Storage

SL-490CA

Humidity control range: 1-20%RH, <1%RH, <5%RH, <10%RH
SMT EMS IPC/JEDEC Ultra Low Humidity Dry Cabinet
Same Model SL-416CA


5%RH Utra low humidity storage SL-490CA ESD Coating(490 Liters)

  • <5% RH ultra-low humidity dry cabinet, patented dehumidification technology
  • Extremely fast recovery to ultra-low humidity in 5 mins
  • Remove trace moisture / prevent oxidation and rust of electronic parts
  • Increase process yield rate/effective cost reduction/save management time
  • Meet and exceed U.S. IPC/JEDEC J-STD-033 preservation standards
  • Dry Cabinet for Moisture Sensitive Devices
  • Quickly recover the dry condition of the component, floor life reset of the unit
  • No need for nitrogen / no need for air compressor / no need for high temperature baking
  • Simple operation/no supplies/no pipe connection/low power consumption
  • 24-hour safety dehumidification equipment



Necessary dry storage equipment for industrial electronics and semiconductor industry

<5% RH ultra-low humidity dedicated dehumidification technology

Optional: 2 doors type cabinet.



Patent design dehumidifier for ultra-low humidity level

  • Extreme dehumidification: Humidity quickly drops below 10% RH in just 5 minutes, while 5%RH in 10mins.
  • lowest humidity control of less than 1%RH.
  • Multi-purpose / solve all moisture problems in the production process
  • No need for nitrogen / no need for air compressor / no need for high temperature baking
  • Low power consumption.
  • Optional function: Upgrade humidity control range of 1-50% RH at extra charge, the widest range of desiccant dry cabinet control in the industry
  • Received multiple key patent technologies, unauthorized reproduction will be prosecuted.



<20% RH low-humidity dedicated intelligent digital panel

  • Utilizing the low-humidity special sensor provided by US manufacturer Silicon Labs
  • Humidity detection range: 1-99%RH
  • Humidity display accuracy is ±3%RH (at 1-60%RH)
  • Dehumidification guarantee: can easily drop to 1% RH minimum humidity value
  • Built-in simple record function to monitor humidity changes over 24 hours (up to 12 sets of records)
  • Optional function: Humidity alarm system



The manufacturing of the ultra-low moisture cabinet completely follows the standards of IPC/JEDEC J-STD-033 on managing the IC integrated circuit. The omission of repackaging and the high temperature treatment enhance the assembly quality while reducing the cost effectively.

Much more superior than the counterparts in terms of dehumidification power, speed of dehumidification after door opening, life span and energy saving.

1、Extreme Speed Desiccating Performance

Ambient: 25℃, 50%RH.

At first use (empty cabinet), it takes 2-12hours to reach 5%RH. And it can keep in lowest humidity level for 24-72hours.



2、Speedy humidity reduction even with multiple door openings

Ambient: 25℃, 50%RH.

Empty cabinet testing, one door opened for 30 seconds, the humidity can recover below to 10%RH within 5-30mins. While 5%RH within 10-60mins



  • With a patented dehumidification structure design, component life is 10 times more durable than other brands
  • Significantly reduces maintenance costs



Over 30 years of heritage and expertise

Steel cabinets are designed with a highly airtight structure

Uses the same strong magnetic sealing strip as the refrigerator



  • Anti-static paint for all cabinets
  • 3mm or more anti-static tempered glass
  • Large heavy-duty conductive wheel set
  • Ground wire 1MΩ
  • Heavy-duty anti-static steel laminate with an average load of 60KG
  • Optional: Black color coating.
  • Optional: Stainless steel board (customized fittings) for advanced clean rooms








ultra low humidity difference 5RH.png



Industrial electronic dry cabinets, Taiwan made, manufacturer, supplier, factory

taiwan made-EDRY.jpg

Model SL-490CA (Same Model SL-416CA)
Volume 490 Liters
External size H97* W118* D50cm
Internal size H89* W116.8* D47cm
Accessories Upward/Downward adjustable shelf*3, lock key
Humidity Control Range 1-20%RH
Desiccating Capability Return to 5%RH in less than 10 minutes; Return to 10% RH in less than 5 minutes. It can easily return to 1%RH and stable control.
Humidity Control Design Intelligent microcomputer control, touch control panel operation, LCD panel display.
Cabinet body design Cabinet body uses 1mm strengthen steel plate and 3mm tempered glass door.
Power Source AC110V+10V 50/60HZ or customized AC220V+10V 50/60HZ or other customized power requirement.
